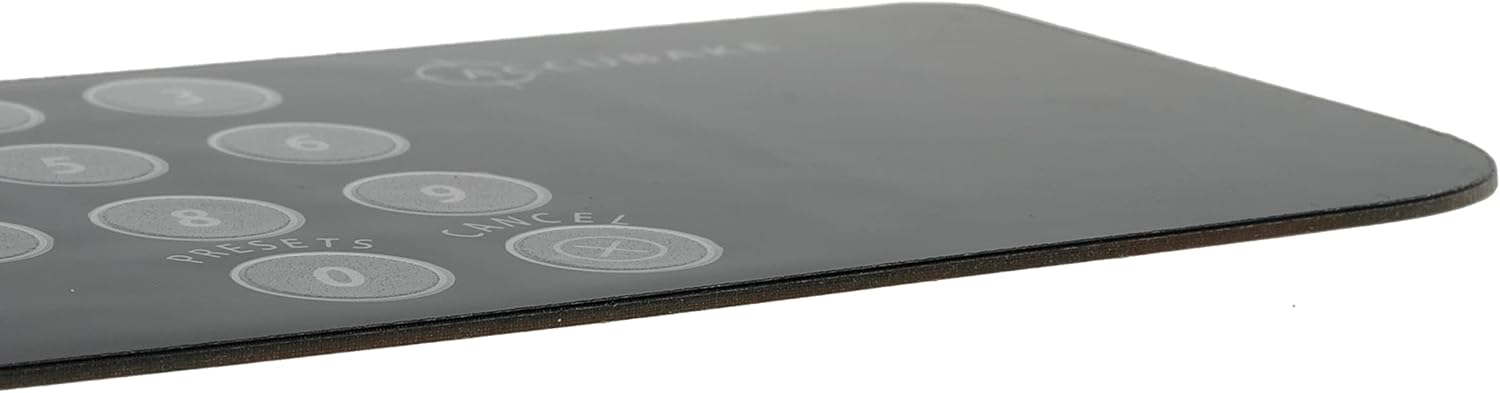

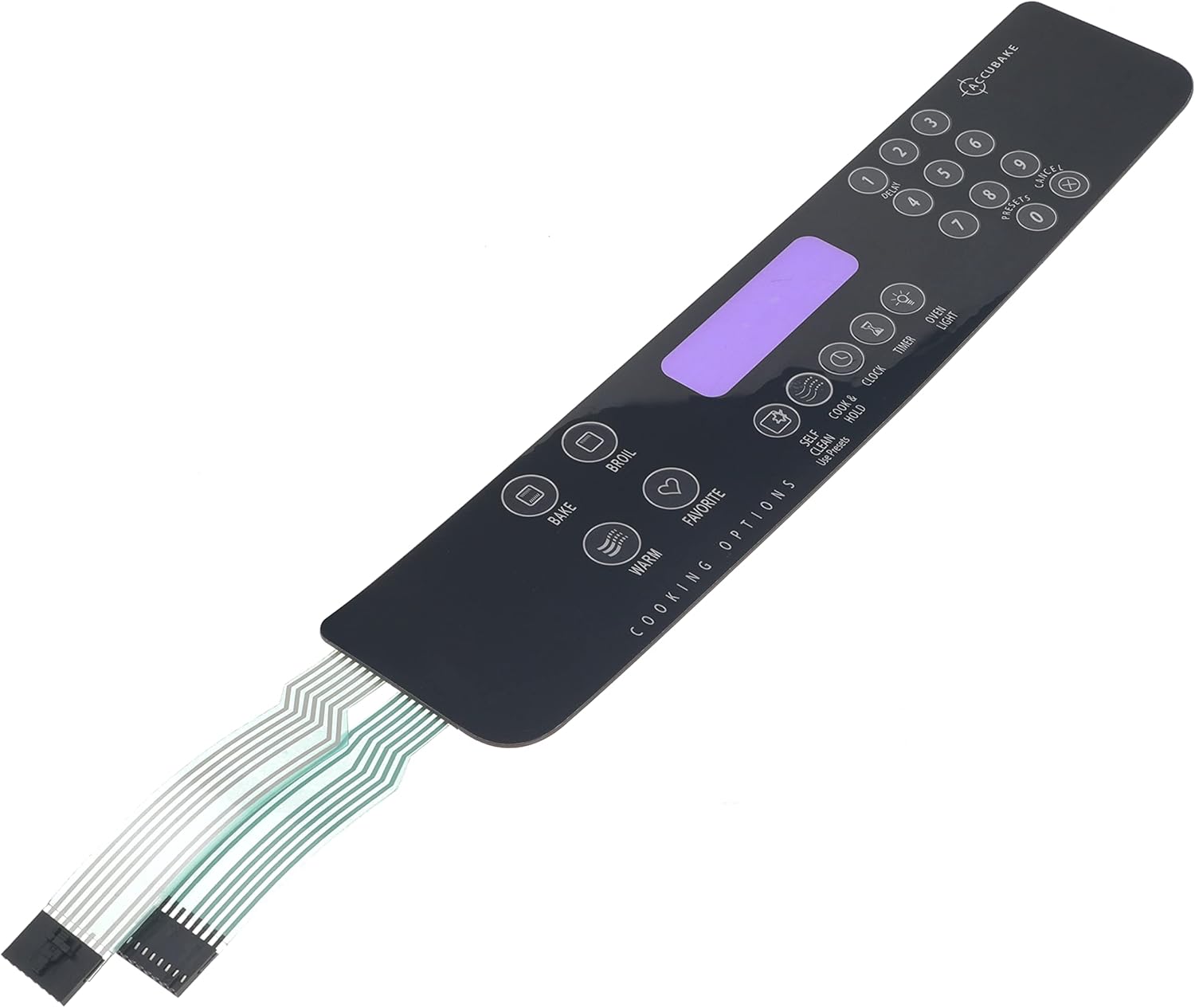

Touchpad W10207928 Switch Membrane Control Panel for Whirlpool Range Oven Stove

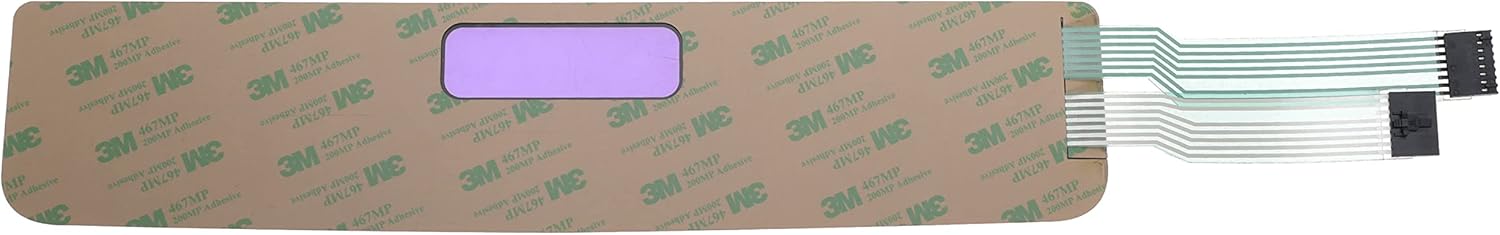

For Whirlpool ranges Part number: WPW10207928 (AP6017095) W10207928 PS11750390 W10177225 Specifications: Overall length: 18.39 inch/467mm (including the ribbon connectors) Length: 13.62 inch/346mm Width: 3.07 inch/78mm Thickness: 0.04 inch/1mm The touchpad is black with gray buttons, allow users to select range functions and easy to operate How to install: 1.Clean up the control board with an alcohol wipe; 2.ONLY peel off half of the adhensive backing (the half away from the connectors); 3.Fold over a tab on the unpeeled backing for easy grasp for removal 4.Place the unpeeled side of the keypad in perfect location, and only when placement is perfect on the unpeeled end, stick down the other (peeled) end. (It will be easier if you line up the top edge and tilt up a little from the bottom.) NOTE: The very small adhesive backing strip under the ribbon connectors will be hard to remove if you don't remove it first--but you can remove it, shift it a little so it's easy to grasp, and place it back under the ribbons to prevent the ribbon from getting stuck in the adhesive. That makes it easy to get out as you lower the keypad and stick the adhesive on that end.

• Replacement compatible with Whirlpool ranges and is used to control the range
• Replaces part number: WPW10207928 (AP6017095), W10207928, PS11750390, W10177225
• Made of high quality material, easy installation
• Please clean up the control board throughly cuz the touchpad is adhensive on the surface, which will help the overlay stick on the surface permanetly
• NO instructions included. Please contact us if you have any questions about our products
